ECORE Quad Blok Connector for 1" Tiles
✔️ Authorized ECORE Athletic Dealer
✔️ 100% Made in the USA
✔️ Commercial Grade Product
✔️ Question? Ask An Expert: 720-515-3585
ECORE Quad Blok Connector for 1" Tiles is backordered and will ship as soon as it is back in stock.
ECORE Quad Blok Connector for 1" Tiles is backordered and will ship as soon as it is back in stock.
Description
Description

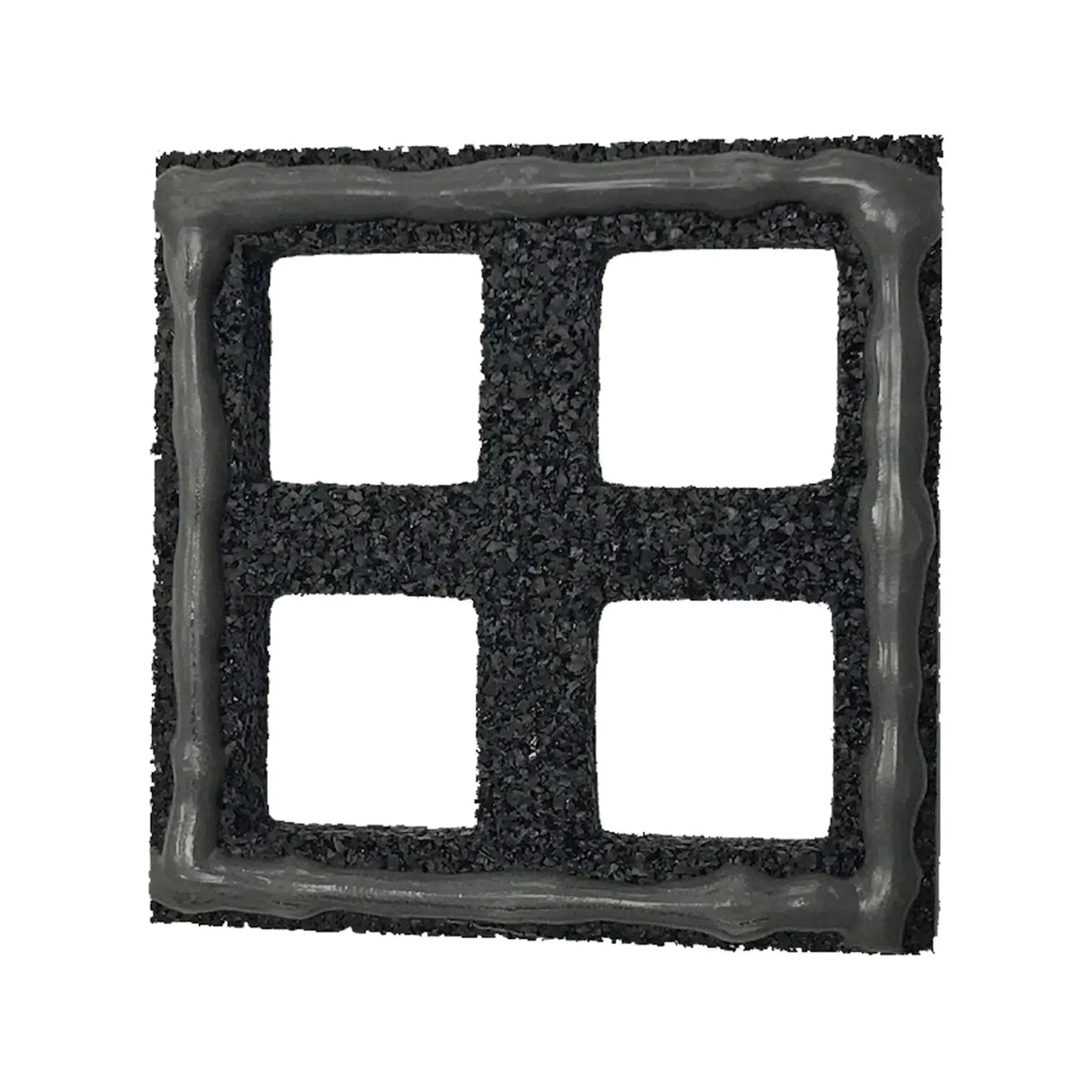

The ECORE Quad Blok Connector revolutionizes the installation of 1" molded rubber tiles (such as UltraTile) with precisely engineered openings that interface perfectly with corner leg understructures. This innovative connector system eliminates the old dowel method and enables easy-down/easy-up tile installation for maximum flexibility.
- 100% American made
- Precisely located openings interface with corner leg understructure
- Easy-down/easy-up installation — tiles remain removable
- Replaces outdated dowel installation method
- Compatible with all ECORE 1" molded tiles
- 4.74" x 4.74" x 0.47" dimensions
- High-quality composition rubber construction
- Weighs 0.49 lbs per connector
- Each 2' x 2' tile requires 1 Quad Blok
- Installs with E-Grip III adhesive
- One 28oz adhesive tube covers 40 connectors
- 15-year warranty for indoor use
Specifications
Specifications
-
Make
-
Model
-
SKU
-
GradeCommercial
-
TypeRubber quad blok
Reviews (0)
Reviews (0)
Summary
Summary
Payment & Security
Your payment information is processed securely. We do not store or have access to your card information.
-
Made in the USA
High quality adhesive
Frequently Asked Questions
It's a specialized connector that secures ECORE 1-inch molded tiles with precisely engineered openings that interface with tile corner legs.
Each connector measures 4.74" x 4.74" x 0.47" and weighs 0.49 pounds, manufactured from high-quality composition rubber.
- Length: 4.74 inches (120.4 mm)
- Width: 4.74 inches (120.4 mm)
- Height: 0.47 inches (12 mm)
- Weight: 0.49 pounds (0.22 kg)
- Material: Composition rubber (molded)
- Coverage: 1 connector per 2' x 2' tile
Install using ECORE's E-Grip III adhesive applied in a quarter-inch bead around each connector's perimeter before positioning tiles.
The connector includes a 15-year warranty for indoor use applications.
Each 2' x 2' molded tile requires exactly one Quad Blok Connector for proper installation.
- Coverage ratio: 1 connector per 2' x 2' tile
- Adhesive coverage: 1 tube E-Grip III per 40 connectors
- Example: 100 tiles = 100 connectors + 3 adhesive tubes
The Quad Blok system eliminates dowel complexity while enabling removable tile installation for maintenance access and layout flexibility.
