ECORE Quad Blok Connector for 2.5" Tiles

Name: ECORE Quad Blok Connector for 2.5" Tiles
Brand: ECORE Athletic
SKU: PGA-000123
Price: 4.95 USD
Availability: InStock

$4⁹⁵ $7⁵⁹

Shipping calculated at checkout.

‎ ‎ ‎ ‎ ‎ ‎✔️ Authorized ECORE Athletic Dealer
‎ ‎ ‎ ‎ ‎ ‎✔️ 100% Made in the USA
‎ ‎ ‎ ‎ ‎ ‎✔️ Commercial Grade Product
‎ ‎ ‎ ‎ ‎ ‎✔️ Question? Ask An Expert: 720-515-3585

i Know what you want? Click ADD TO CART for quick checkout.

Need help or extra time? Click ADD TO QUOTE to request pricing or consultation from one of our experts.

Which button do I click? Know what you want? Click ADD TO CART for quick checkout.

Need help or extra time? Click ADD TO QUOTE to request pricing or consultation from one of our experts.

Description

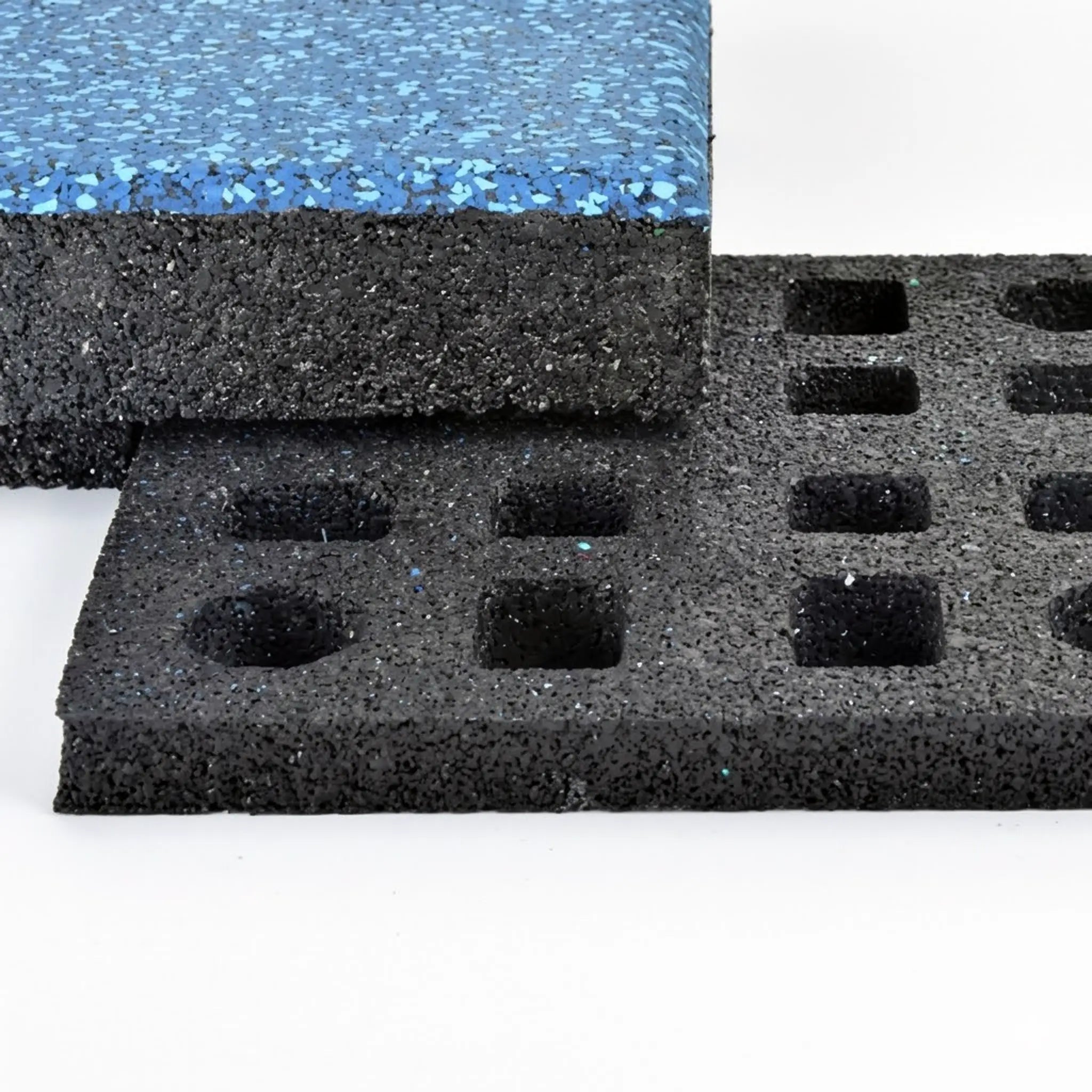

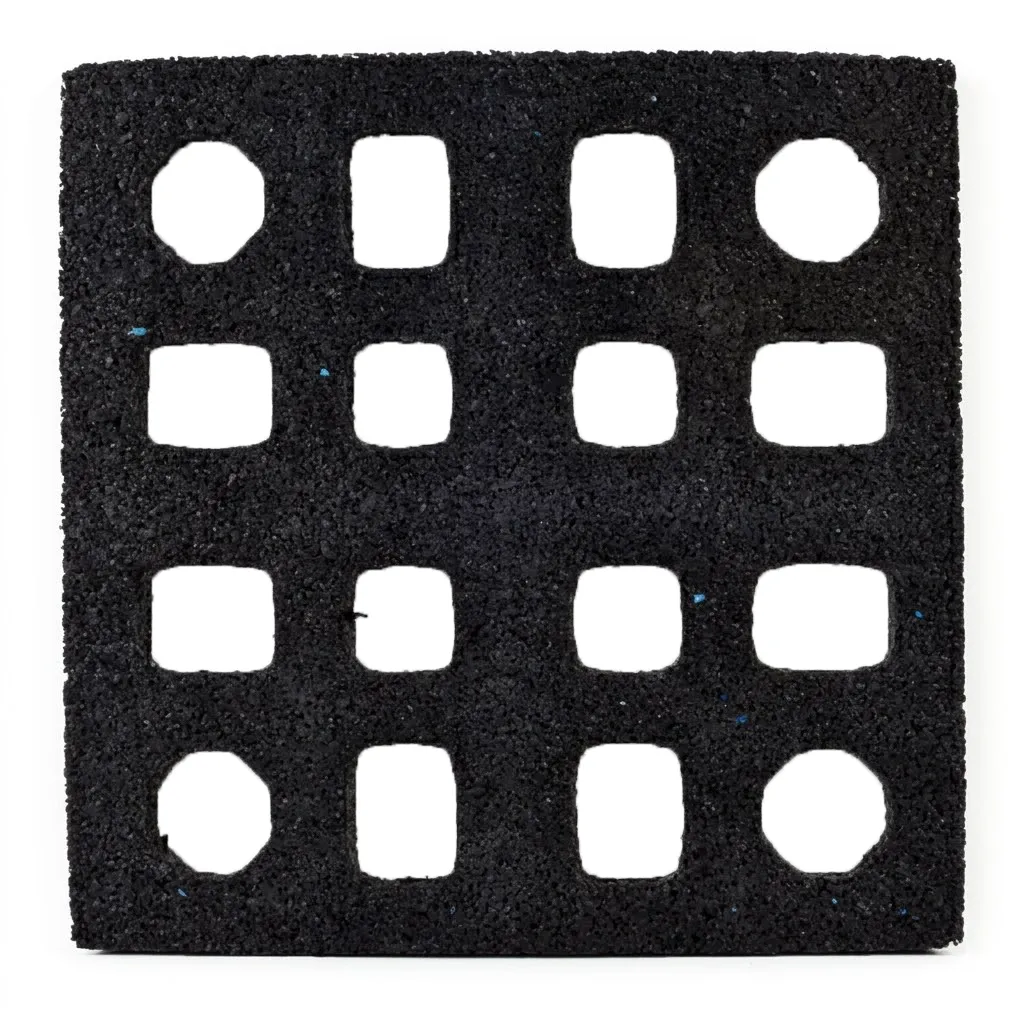

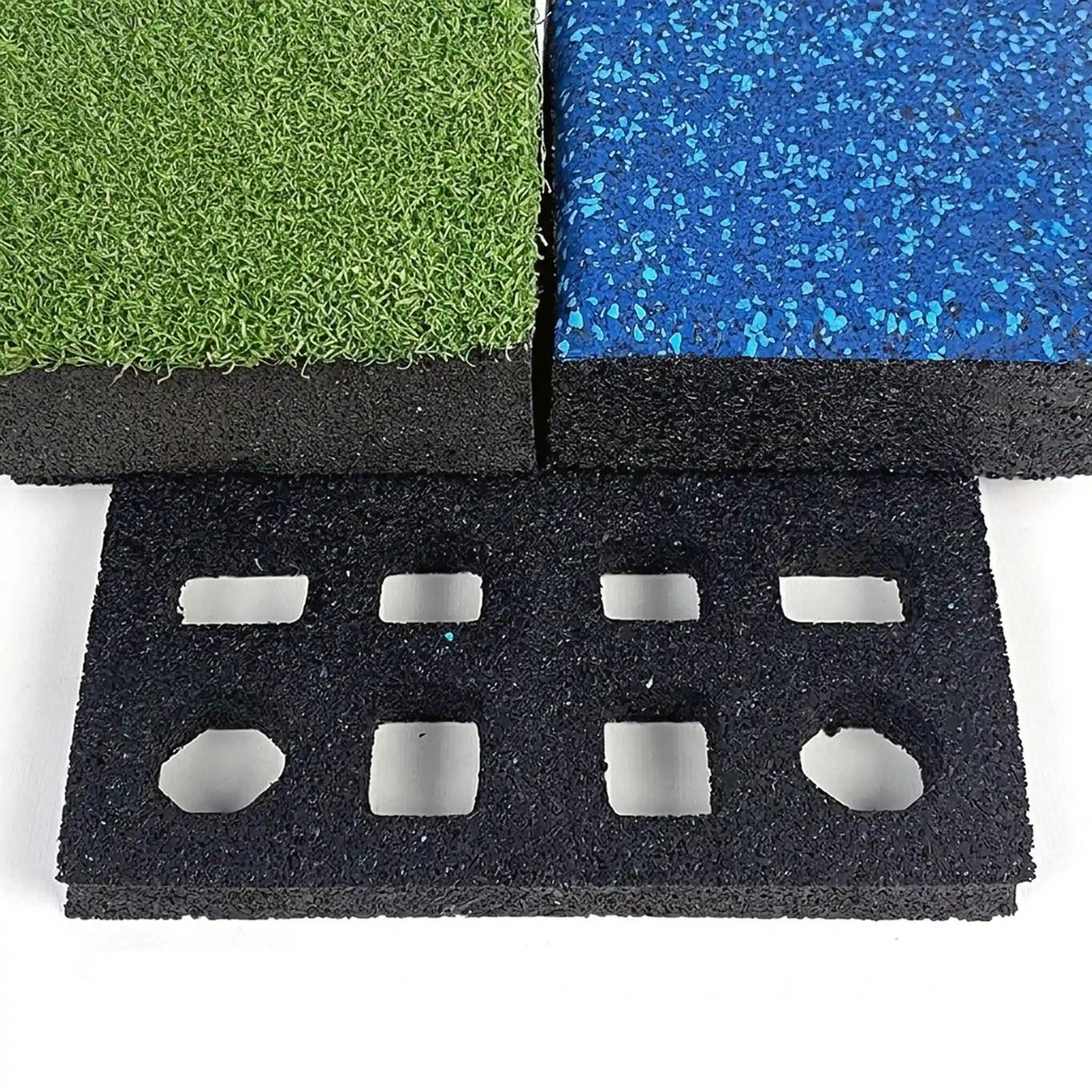

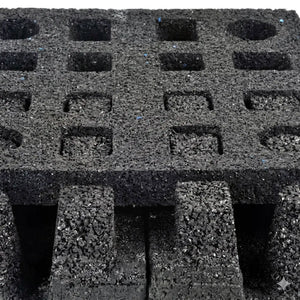

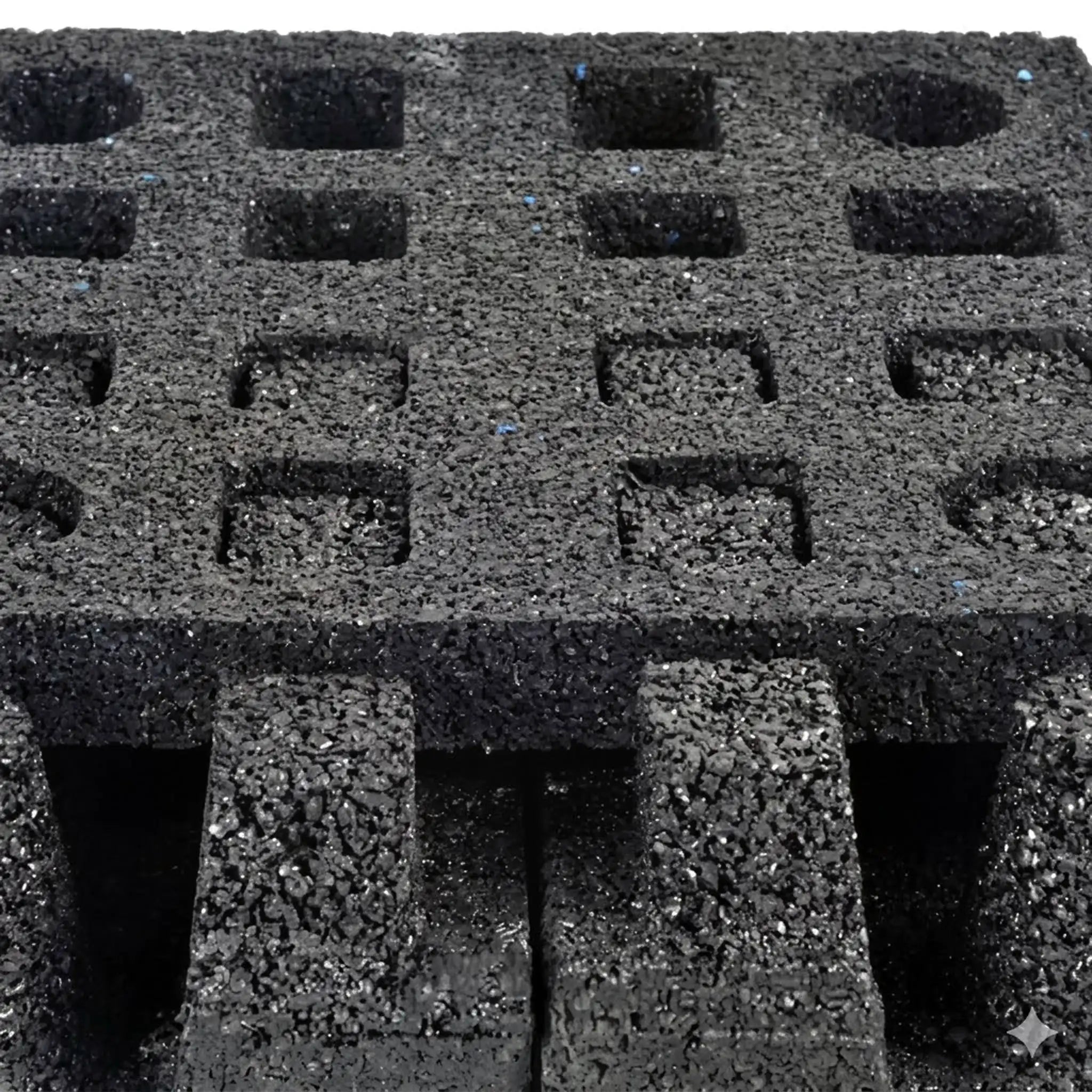

The ECORE Quad Blok Connector for 2.5" tiles is engineered for use with thicker performance tiles like the dBTile and PlayGuard. With precisely engineered openings that interface with the corner leg understructure, this connector system enables easy-down/easy-up tile installation for maximum flexibility.

100% American made
Precisely located openings interface with corner leg understructure
Easy-down/easy-up installation — tiles remain removable
Replaces outdated dowel installation method
Compatible with ECORE 2.5" tiles (dBTile, PlayGuard)
7.75" x 7.75" x 0.67" dimensions
High-quality composition rubber construction
Each 2' x 2' tile requires 1 Quad Blok
Installs with E-Grip III adhesive
5-year commercial warranty

Specifications

Make

ECORE
Model

17mm Quad Blok
SKU

PGA-000123
Grade

Commercial
Type

Rubber Quad Blok

Reviews (0)

Summary

The ECORE Quad Blok Connector for 2.5" tiles represents a significant advancement in modular flooring installation technology, specifically designed for thicker performance tiles like the dBTile and PlayGuard. Each connector measures 7.75" x 7.75" and is manufactured from high-quality composition rubber, engineered with precisely located openings that interface perfectly with the corner leg understructure of 2.5" molded tiles.

The Quad Blok system replaces the traditional dowel installation method with a more reliable, maintenance-friendly approach. The easy-down/easy-up design means tiles can be removed and reinstalled without damage, making it ideal for facilities that need periodic subfloor access for maintenance or inspection. Installation requires ECORE E-Grip III adhesive applied in a quarter-inch bead around each connector perimeter, with one 28oz tube covering approximately 40 connectors.

Each 2' x 2' tile requires exactly one Quad Blok Connector, making project planning straightforward. The connector is 100% American made and backed by a 15-year warranty for indoor applications.

Payment & Security

Your payment information is processed securely. We do not store or have access to your card information.

Made in the USA

High quality adhesive
Fast & Affordable Shipping

Items in stock, ready to ship
Call, Email, or Live Chat

Contact our experts for help
Authorized Dealer

We're a dealer of ECORE Athletic

Frequently Asked Questions

1) What is the ECORE 2.5" Quad Blok Connector and what is it used for?

A specialized connector that secures ECORE 2.5" tiles like dBTile and PlayGuard with precisely engineered openings that interface with the tile understructure.

The Quad Blok Connector revolutionizes modular flooring installation by replacing traditional dowel connections with a more reliable, removable system. Each 7.75" x 7.75" connector is placed beneath the corner junction of four 2.5" tiles, with its precisely located openings aligning with the corner leg understructure to create a secure yet removable connection.

2) What are the dimensions and specifications of the 2.5" Quad Blok Connector?

Each connector measures 7.75" x 7.75" x 0.67", manufactured from high-quality composition rubber.

Technical specifications: The connector has a 7.75-inch square footprint with a 0.67-inch (17mm) height, designed specifically to work with the thicker 2.5" tile systems including dBTile and PlayGuard.

Length: 7.75 inches (196.9 mm) Width: 7.75 inches (196.9 mm) Height: 0.67 inches (17 mm) Material: Composition rubber

3) How do you install the 2.5" Quad Blok Connectors?

Install using ECORE E-Grip III adhesive applied in a quarter-inch bead around each connector perimeter.

Installation process: Apply E-Grip III adhesive in a continuous quarter-inch bead around the connector perimeter. Position the connector at the corner junction of four tiles, aligning the openings with the tile leg understructure. Press firmly into place. One 28oz tube of E-Grip III adhesive covers approximately 40 connectors.

4) What warranty coverage does the 2.5" Quad Blok Connector have?

The connector includes a 15-year warranty for indoor use applications.

Warranty coverage: ECORE backs the Quad Blok Connector with a comprehensive 15-year warranty protecting against manufacturing defects in materials and workmanship under normal indoor use conditions.

5) How many Quad Blok Connectors do I need for my project?

Each 2' x 2' tile requires exactly one Quad Blok Connector for proper installation.

Calculation method: Simply count the number of 2' x 2' tiles in your layout to determine connector quantity. Each tile gets one connector positioned at its corner junction.

Coverage ratio: 1 connector per 2' x 2' tile Adhesive coverage: 1 tube E-Grip III per 40 connectors

6) Which ECORE tiles are compatible with the 2.5" Quad Blok Connector?

The 2.5" Quad Blok is designed for ECORE dBTile and PlayGuard tile systems.

Tile compatibility: This connector is specifically engineered for 2.5"-thick tile products including the Performance dBTile acoustic tile and PlayGuard playground safety tile. For 1" tiles like UltraTile, use the smaller 1" Quad Blok Connector (ELA-000011) instead.

See all FAQs

Product Files / Resources

Technical Drawing
