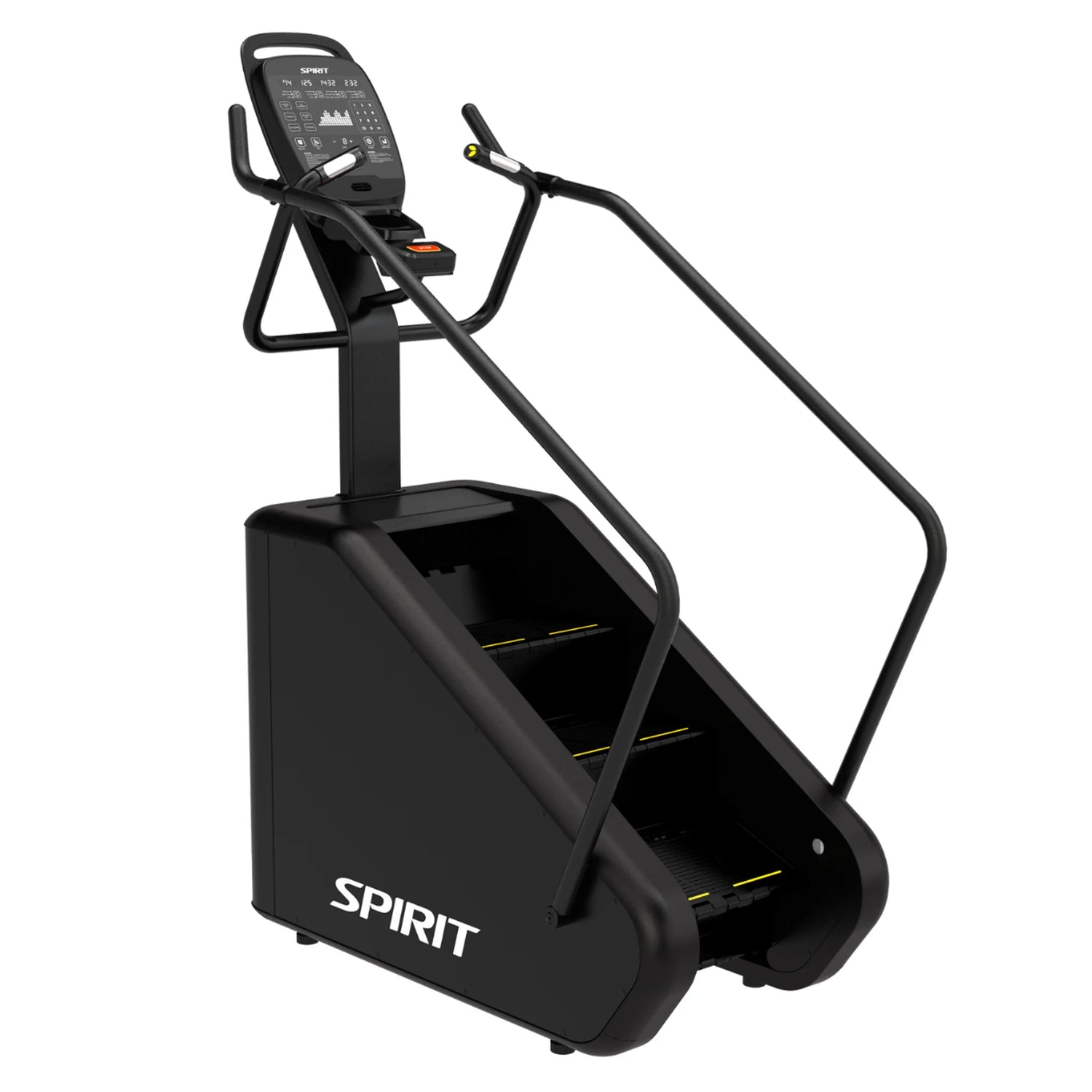

Spirit Fitness CSC880 Stair Climber

No step down — the CSC880 uses the same commercial-grade steel frame and chain-driven Poly-V belt brake as Spirit's larger stair climbers, just built into an 8' ceiling-friendly footprint.

The CSC880 is built on a commercial-grade steel frame with the same chain-and-Poly-V-belt electromagnetic induction brake drive system Spirit uses across its commercial stair climber line, not a scaled-down residential mechanism. It's rated for a 330 lb max user weight and backed by Spirit's Commercial warranty tier — 10 years on the frame — for dues-paying facility use. What makes the CSC880 different is its footprint: an 8' minimum ceiling clearance and a frame sized to pass through standard doorways let it go into spaces a full-height commercial climber can't reach, without trading away the drivetrain or frame quality. Blue Sky Fitness Supply is an authorized Spirit Fitness dealer, so the commercial warranty is enforceable through us for the life of the coverage period.

It ships via LTL freight in a single wooden crate at 520 lbs with liftgate delivery included by default, and Spirit recommends at least two people handle unboxing and assembly.

The CSC880 ships freight in one wooden crate weighing 520 lbs, with liftgate delivery included by default so the crate comes off the truck without a dock or forklift. Inside, the unit arrives disassembled with the main frame, front column, handrails, console, and a hardware kit including 5mm, 6mm, and 8mm Allen wrenches — everything needed for setup is in the box. The owner's manual is explicit that one person should never attempt to move the unit alone; at least two people are needed to safely lift and position the frame during assembly. Professional installation is also available through Blue Sky Fitness Supply if you'd rather not assemble it yourself.

Contact Blue Sky Fitness Supply first — we handle the warranty claim and coordinate sourcing the replacement part, rather than leaving you to navigate Spirit Fitness's service line alone.

If a part fails within the warranty period, Blue Sky Fitness Supply handles the claim on your behalf and coordinates with Spirit Fitness's authorized service network to source the replacement part. All repairs must be preauthorized before work begins. Spirit Fitness's own service department is also available directly at 800-258-8511 if you'd rather reach out yourself, but it's never required — Blue Sky manages the process either way. Keep your bill of sale for at least 18 months after delivery, since it may be requested if service is needed.

Three usage tiers apply: 10-year frame / 3-year parts & labor for Commercial facilities, 10-year frame / 5-year parts for Light Commercial, and Lifetime frame / 10-year parts for Residential use.

Spirit Fitness backs the CSC880 with three facility-based warranty tiers. Commercial (dues-paying) facilities get a 10-year frame warranty, 5 years on the brake, 3 years on parts and labor, and 6 months on wear items. Light Commercial facilities — non-dues-paying spaces like apartment or hotel gyms — get the same 10-year frame and 5-year brake, with parts extended to 5 years and labor at 2 years. Residential use carries the strongest terms: a Lifetime frame warranty, 5-year brake, 10-year parts, and 2-year labor, all with the same 6-month wear-items allowance. Warranty registration must be completed within 10 days of delivery, either with the included card or at spiritfitness.com/warranty, to validate coverage.

Likely yes — it needs just an 8' minimum ceiling clearance and a footprint sized to pass through standard doorways, making it Spirit's most space-friendly commercial stair climber.

The CSC880 was purpose-built for compact spaces: it requires only an 8' minimum ceiling clearance, well under what most full-size commercial stair climbers need, and its frame is sized to fit through standard doorways during setup and delivery. Assembled, it measures 62.7" L x 31" W x 78.6" H and weighs 370 lbs, with front transportation wheels to help reposition it once it's built. Because ceiling height is the single most common fit surprise on a stair climber, measure your actual clearance — including any ductwork, beams, or sloped sections — before ordering, especially for a basement installation. If your space clears 8 feet and a standard doorway, the CSC880 is designed to work.

20 levels of magnetic resistance and speeds up to 157 steps per minute, run across 11 built-in programs including WFI and CPAT fitness tests.

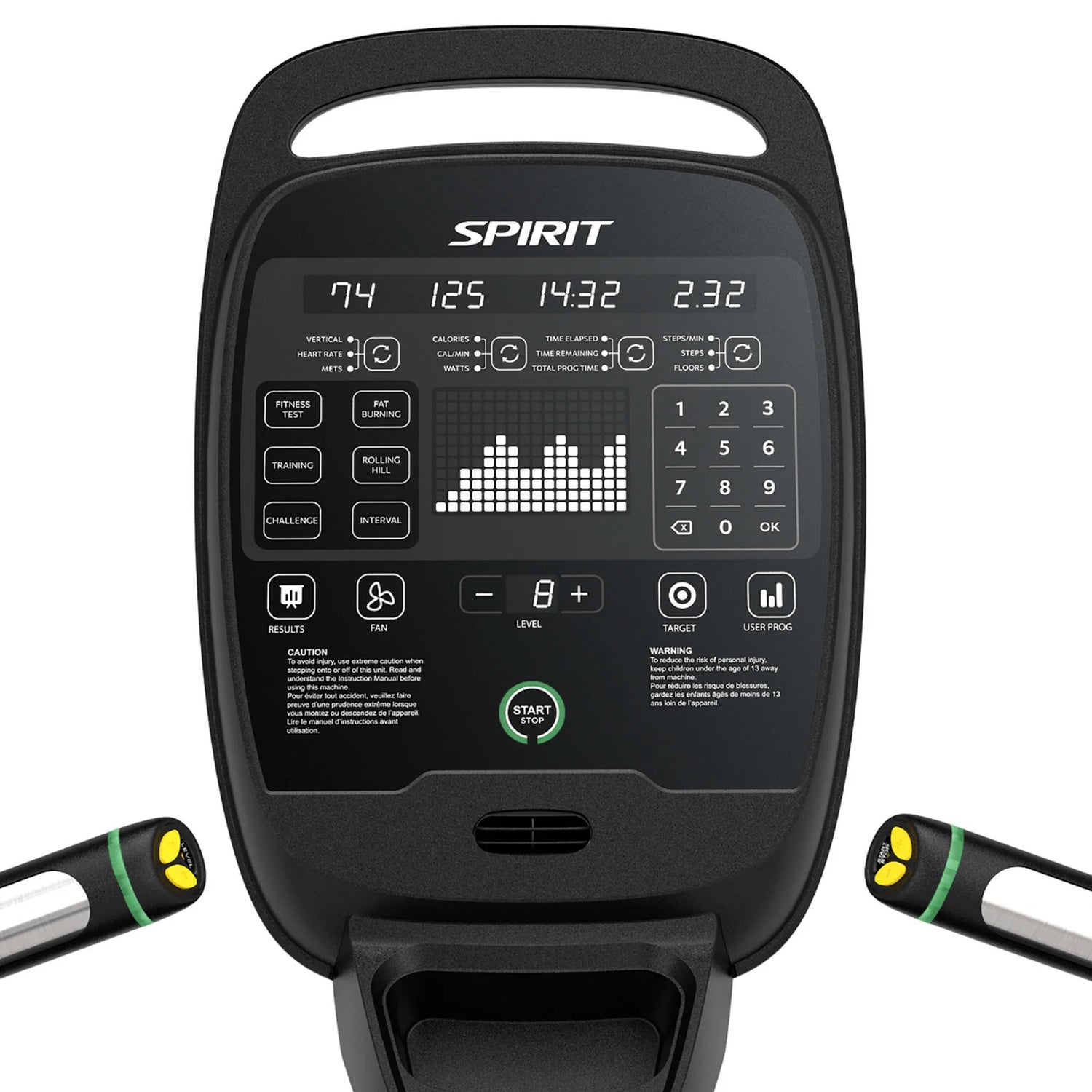

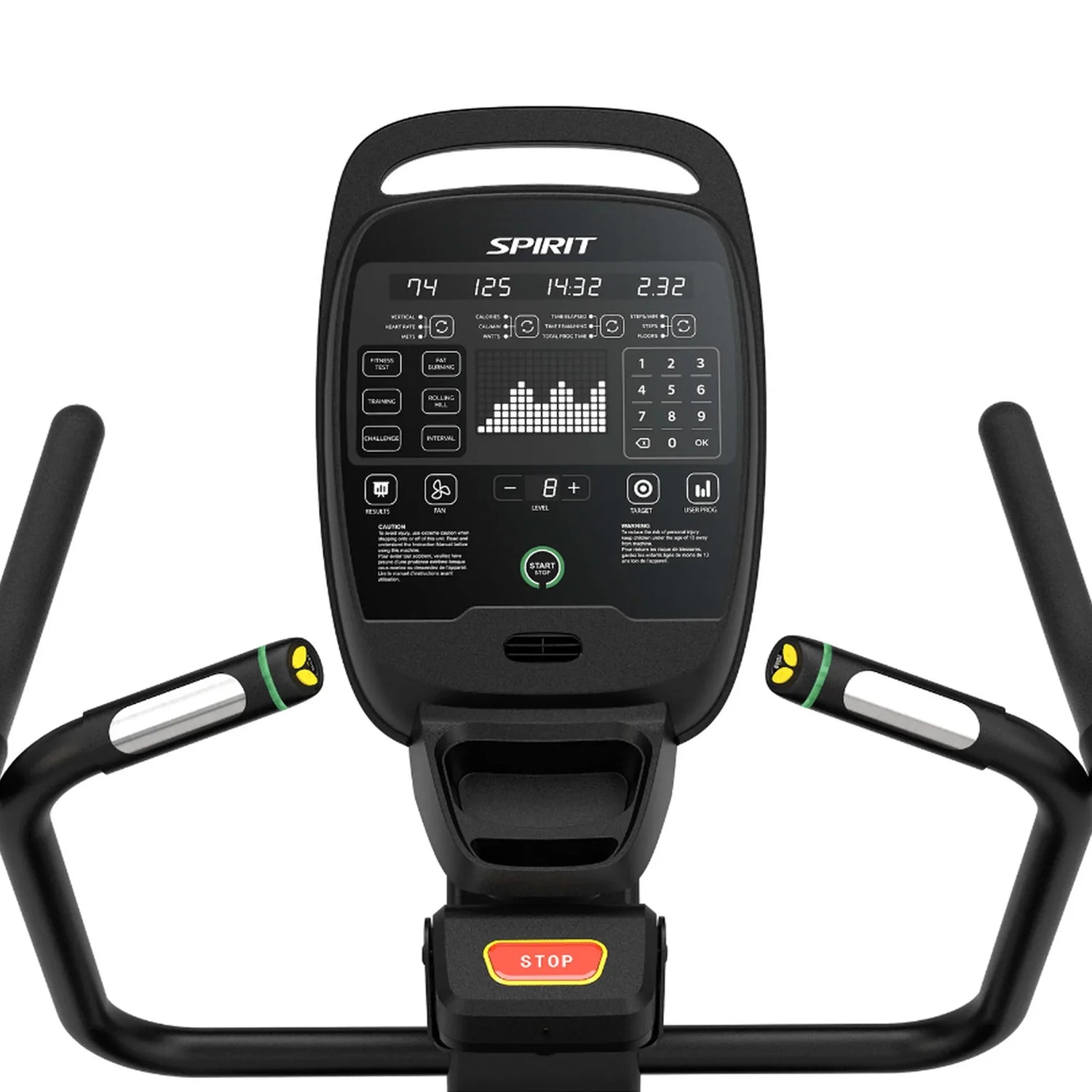

The CSC880 offers 20 levels of magnetic resistance driven by a chain and Poly-V belt electromagnetic induction brake, with a speed range of 25 to 157 steps per minute covering everything from a warm-up pace to an interval push. Eleven built-in programs cover Warm Up, Fat Burning, Training, Rolling Hills, Challenge, Interval, three Target programs, a User-defined program, and both WFI and CPAT fitness tests for facilities that need standardized assessment protocols. The 6-window white LED console tracks program, level, vertical distance, heart rate, METs, calories, calories per minute, watts, time, steps per minute, steps, and floors climbed in real time. Handlebar-mounted buttons adjust resistance and control start/stop/pause without needing to look down mid-workout.

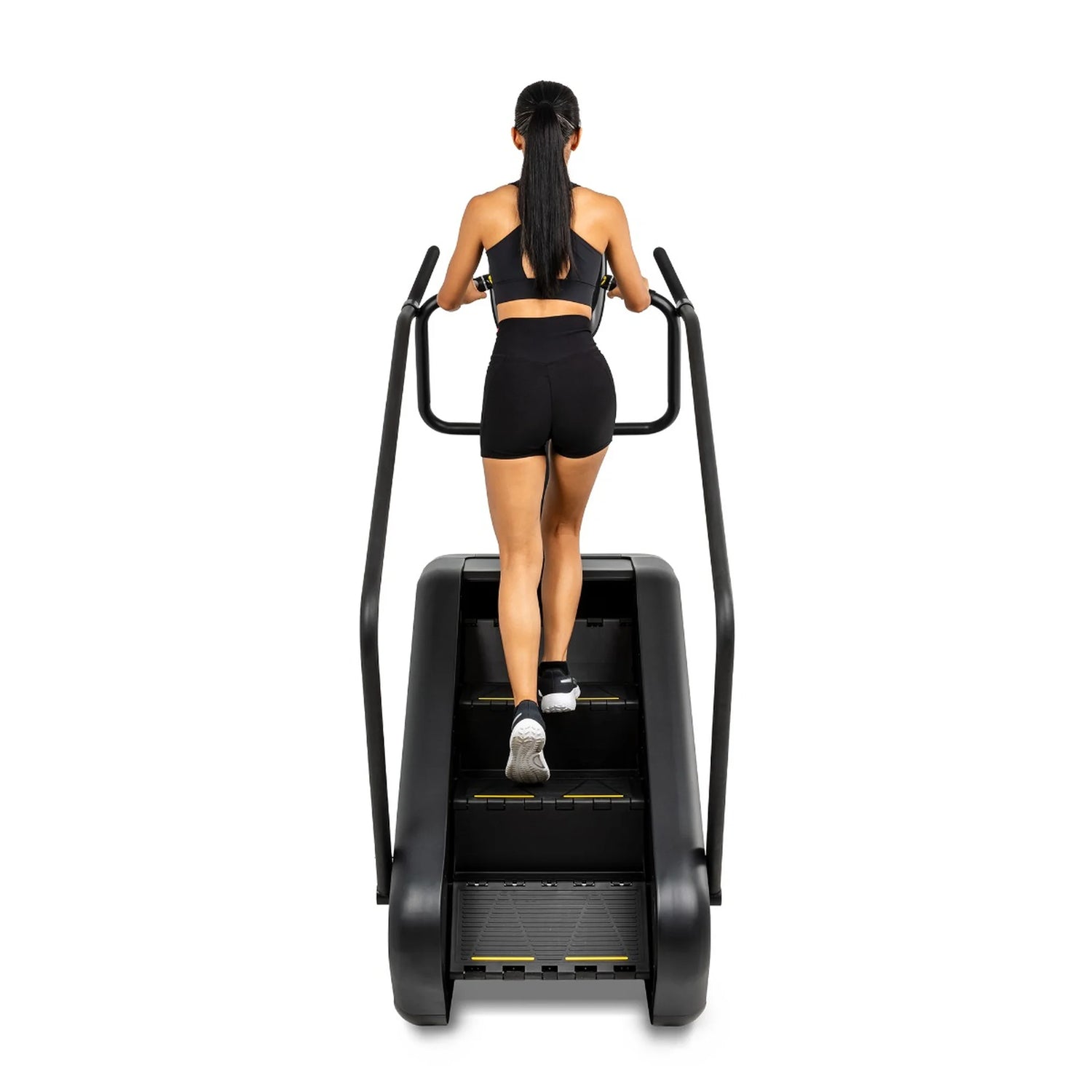

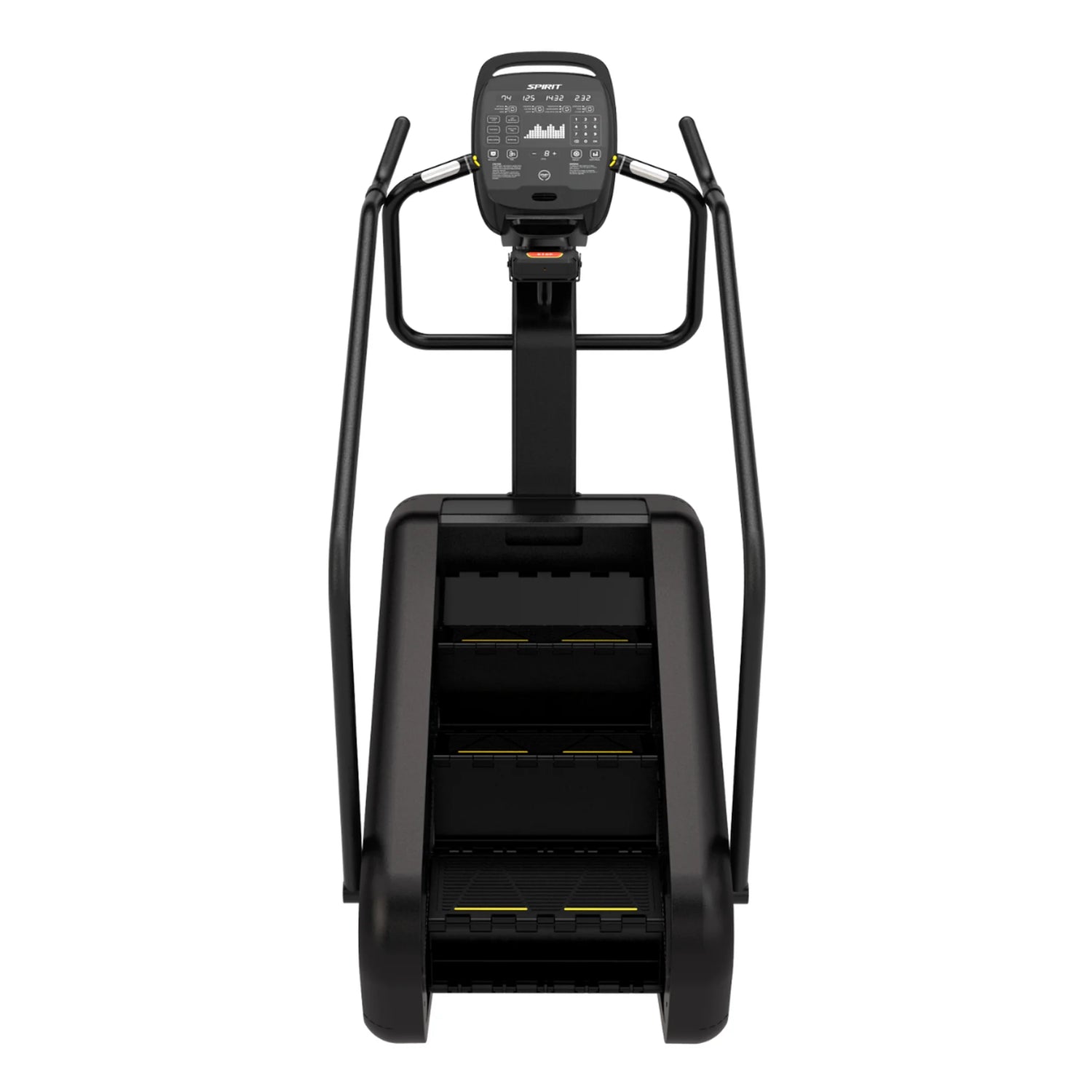

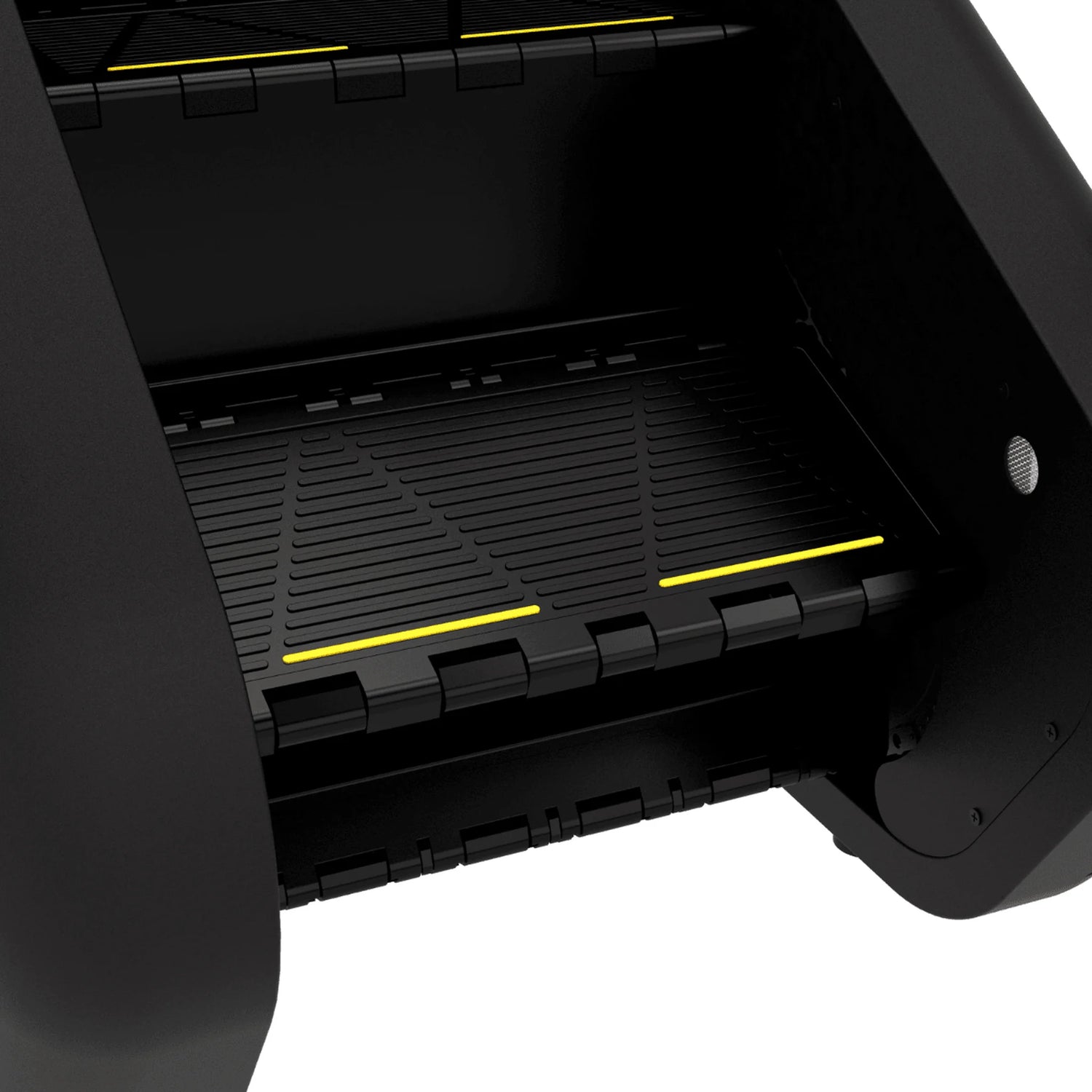

Each step measures 17.7" wide by 11" deep, and a photo-optic sensor automatically stops the machine if a user exceeds the lower limit of step travel.

The CSC880's steps measure 17.7" wide by 11" deep with a 7" step-to-step height and an 11.8" first-step height, sized to comfortably fit a wide range of foot sizes. The revolving staircase runs on a chain-driven Poly-V belt transmission through an electromagnetic induction brake, giving the stepping motion smooth, consistent resistance rather than a jerky feel. For safety, a photo-optic sensor monitors step travel and automatically stops the unit if a user steps past the lower limit of the staircase, and an emergency stop clip and console button are also built in. Steel handrails with a durable grip coating run the length of the unit for a secure hold throughout a session.

Heart rate is tracked through contact grip sensors built into the handlebars (no Bluetooth or chest strap) — the box includes the main frame, console, handrails, and a full hardware kit.

The CSC880 monitors heart rate through contact pulse sensors built into the handlebar grips — it doesn't include Bluetooth or wireless chest-strap connectivity, so heart rate reads only through direct hand contact during your workout. In the box, you'll find the main frame assembly, front column assembly, left and right handrail assemblies, the console assembly, and a hardware kit with 5mm, 6mm, and 8mm Allen wrenches plus all required screws and washers. A cooling fan with two speed settings and a reading/accessory rack are built into the console for longer sessions, and front transportation wheels make repositioning the 370 lb unit easier once assembled.

Commercial Warranty:
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Frame: 10 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Brake: 5 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Parts: 3 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Labor: 3 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Wear Items: 6 months

Light Commercial Warranty:
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Frame: 10 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Brake: 5 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Parts: 5 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Labor: 2 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Wear Items: 6 months

Residential Warranty:
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Frame: Lifetime
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Brake: 5 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Parts: 10 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Labor: 2 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Wear Items: 6 months https://www.blueskyfitsupply.com/pages/warranty-information
