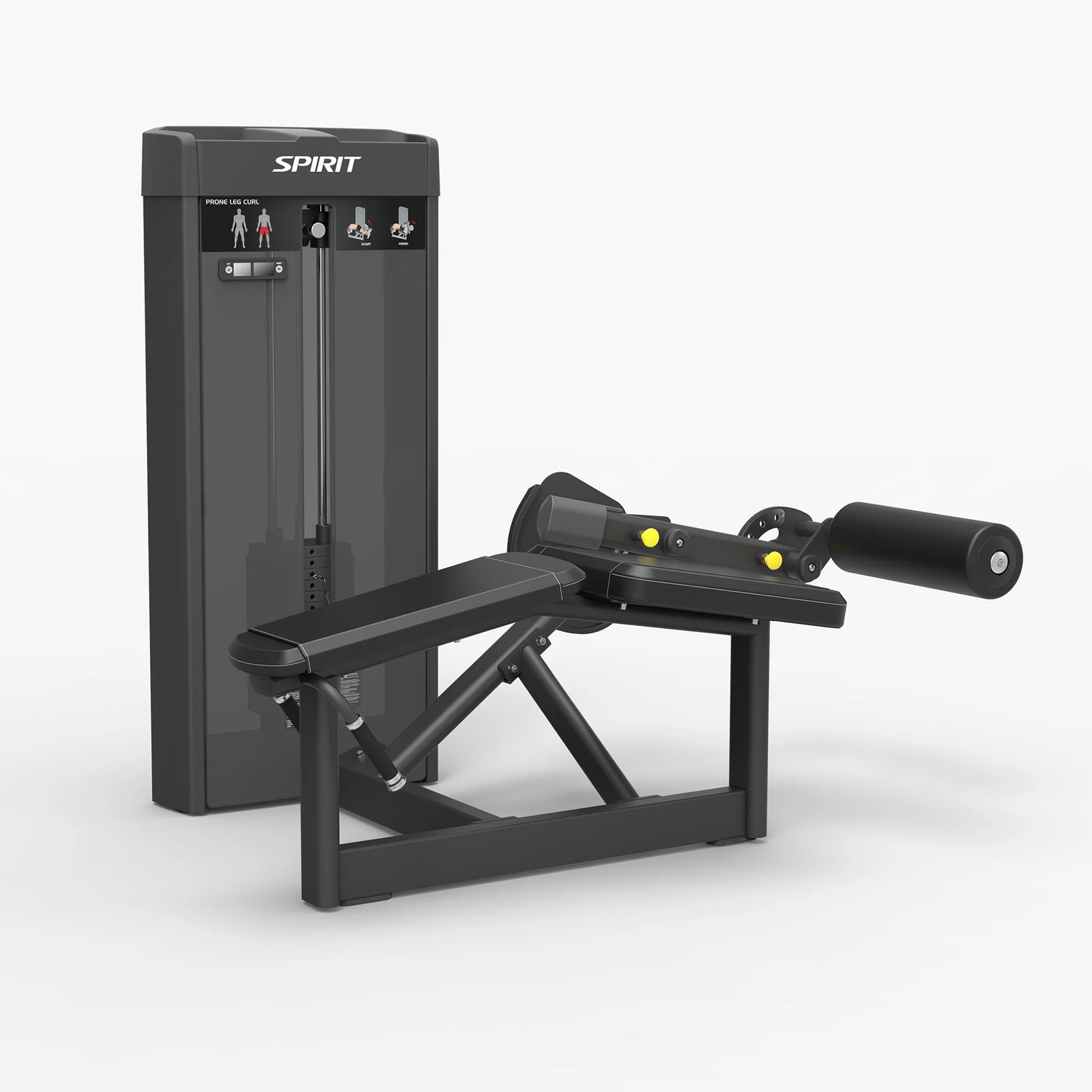

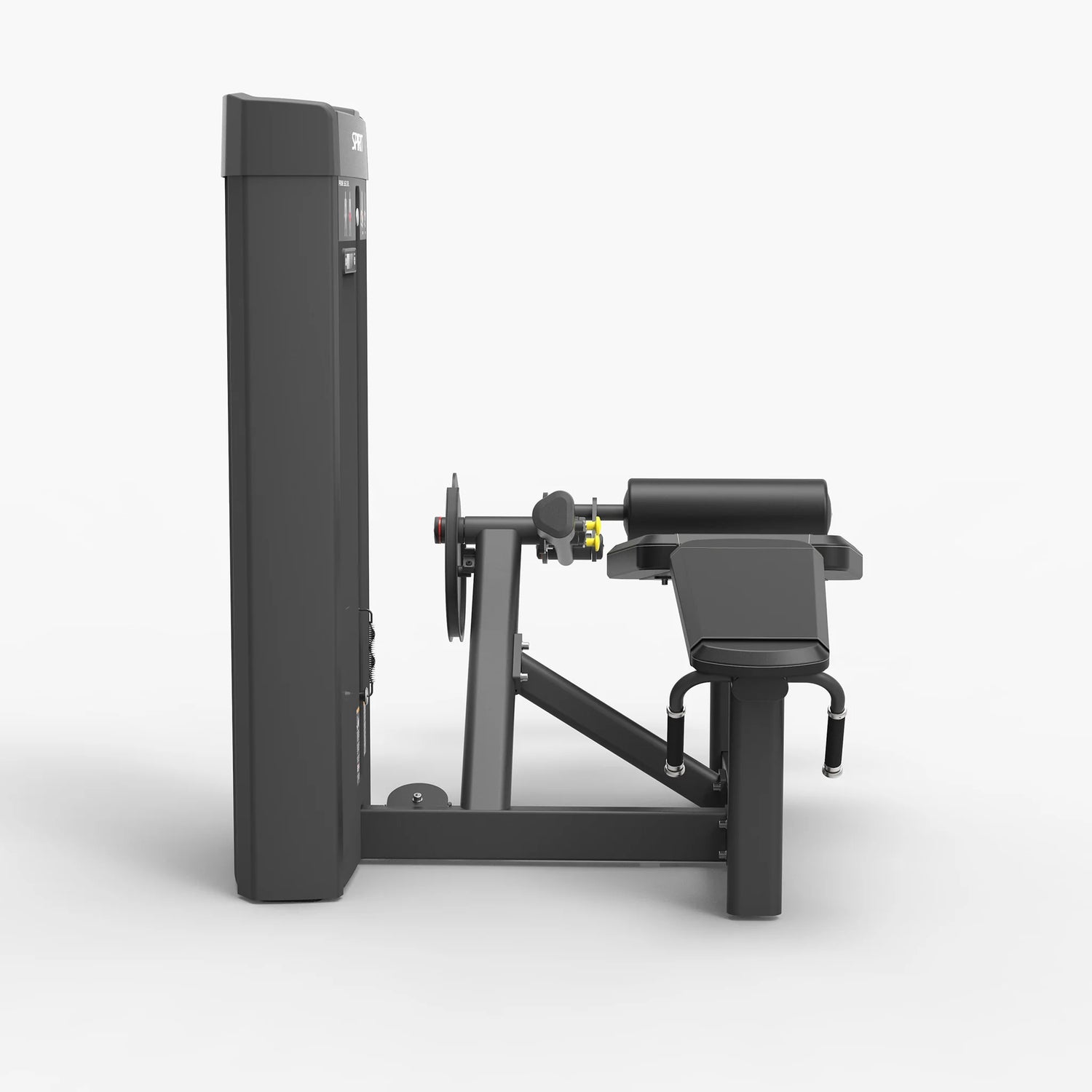

Spirit Fitness CSS-PRLC Prone Leg Curl

Yes — the CSS-PRLC is a dedicated single-station prone leg curl built to Spirit's Commercial grade, with a fully enclosed 250 lb weight stack and a 0.75 pulley ratio through LOOS USA cables.

The CSS-PRLC is part of Spirit Fitness's Selectorized line — single-station machines that isolate one movement rather than combining two exercises on one frame. It trains leg curl exclusively in a prone (lying face-down) position, with a fully enclosed 250 lb weight stack moving in 5 lb increments through a 0.75 pulley ratio and LOOS USA cables. The frame is commercial-grade steel finished in electrostatic powder coat, low-profile enough to keep sightlines open across a gym floor, and rated for a 360 lb max user weight. Spirit backs the CSS-PRLC with its Commercial warranty tier, including a 10-year frame term, the same coverage standard used across its combo and dual machines.

It ships free via LTL freight across multiple cartons with liftgate delivery included by default, and Spirit Fitness recommends at least two people for assembly.

The CSS-PRLC ships free by LTL freight, arriving disassembled across several cartons per Spirit Fitness's packing spec, with liftgate delivery included by default so the crates come off the truck without a dock or forklift. If you have a loading dock or forklift on-site, ask for a no-liftgate freight quote to save on the delivery cost. Each shipment includes a full illustrated owner's manual along with every tool and piece of hardware needed for setup, and Spirit Fitness recommends at least two people handle assembly. Professional installation is also available through Blue Sky Fitness Supply if you'd rather not assemble it yourself.

Contact Blue Sky Fitness Supply first — we handle the warranty claim and coordinate with Spirit Fitness's service network to source the replacement part, so you're not navigating it alone.

If any part of the CSS-PRLC ever needs service, Blue Sky Fitness Supply handles the claim on your behalf and coordinates directly with Spirit Fitness's authorized service network to source the replacement. All repairs must be preauthorized before any work begins. Spirit Fitness's own service department is also reachable directly if you'd rather coordinate yourself, but it's never required — Blue Sky manages the process either way. Warranty registration must be completed online within 10 days of delivery to validate coverage, so keep your bill of sale and register promptly after the machine arrives.

A 10-year term covers the frame, welds, cams & plates; 5 years covers bushings, bearings, shocks, pulleys & guide rods; and 1 year covers finishes, cables, grips & labor.

Spirit Fitness backs the CSS-PRLC with a Commercial warranty covering every functional component. The frame, welds, cams, and plates carry a 10-year term, while bushings, bearings, shocks, pulleys, and guide rods are covered for 5 years. Paint and finishes, cables, grips, the counter/timer, pull-pin components, rail wheels, attachments, and all other parts carry a 1-year term, upholstery is covered for 6 months, and general labor runs 1 year. Registration must be completed online within 10 days of delivery to validate coverage, and prisons or correctional facilities are excluded.

It's built for users from 4'11" to 6'8" up to 360 lb, with an adjustable lower leg pad and an adjustable range of motion for a comfortable fit across sizes.

Spirit Fitness recommends the CSS-PRLC for users from 4'11" to 6'8" tall, rated up to a 360 lb max user weight — a range that covers the vast majority of a commercial membership base. The lower leg pad adjusts to line up correctly with the back of the ankle regardless of a user's leg length, while the range of motion itself is also adjustable, letting staff dial the machine in for a member's comfort and mobility rather than forcing a one-size-fits-all setting. Pad angles built into the frame stabilize the hips throughout the movement, keeping the exercise strict and reducing the chance a user cheats the rep by arching off the pad. That combination of pad adjustment, ROM control, and hip-stabilizing design makes the CSS-PRLC workable across a broader range of bodies than a fixed-position machine would allow.

A fully enclosed 250 lb weight stack moves in 5 lb increments, set with a pop-pin selector, and a 0.75 pulley ratio through LOOS USA cables translates that stack weight into resistance at the leg.

The CSS-PRLC uses a classic pin-select system: a fully enclosed 250 lb weight stack, built from a 10 lb top plate, 4x10 lb plates, and 10x20 lb plates, lets a user set resistance in clean 5 lb increments by moving a single selector pin. That stack weight doesn't translate one-to-one to the leg, though — a 0.75 pulley ratio means the effective resistance felt at the ankle runs lower than the number on the stack, routed through LOOS USA cables chosen for their low stretch and long service life under repeated use. Because the stack is fully enclosed, there's no exposed cable or moving plate for a user to catch a finger on between sets.

The CSS-PRLC isolates the hamstrings, the muscles on the back of the thigh responsible for bending the knee — a staple movement for leg-day strength, injury-prevention programming, and lower-body balance.

Leg curl is a single-joint, hamstring-isolation movement: the CSS-PRLC trains the hamstrings on the back of the thigh, the muscle group responsible for flexing the knee against resistance. Its prone (lying face-down) design also brings the hip joint into the movement across the full range of motion, unlike some seated leg curl designs that isolate only the knee. Because hamstring strength is a common weak point relative to the quadriceps, this movement is frequently programmed for injury-prevention work (a stronger hamstring/quad ratio is linked to lower risk of certain knee and hamstring injuries) as well as straightforward leg-day accessory volume. The hip-stabilizing pad angles keep the exercise strict, so the hamstrings do the work instead of the hips compensating.

Yes — the CSS-PRLC occupies about 68" L × 50.3" W and stands 59" tall, with a low-profile frame designed to keep sightlines open across the room.

The CSS-PRLC occupies about 68 inches long by 50.3 inches wide and stands 59 inches tall, with a low-profile frame designed to keep sightlines open across a busy gym floor. As a single-station machine, it does one job — prone leg curl — rather than combining two exercises on one frame the way Spirit's dual machines do, which makes it a straightforward fit for a facility building out a full circuit of dedicated single-movement stations. Steel feet with rubber covers keep the 467 lb frame stable and floor-safe once it's assembled. For a facility planning a leg-day circuit, the CSS-PRLC's compact, low-profile footprint is an easy complement to a leg extension or leg press station nearby.

Commercial Warranty:
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Frame: 10 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Bushings / Bearings / Pulleys: 5 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Other parts: 1 year
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Upholstery: 6 months
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Labor: 1 year https://www.blueskyfitsupply.com/pages/warranty-information
