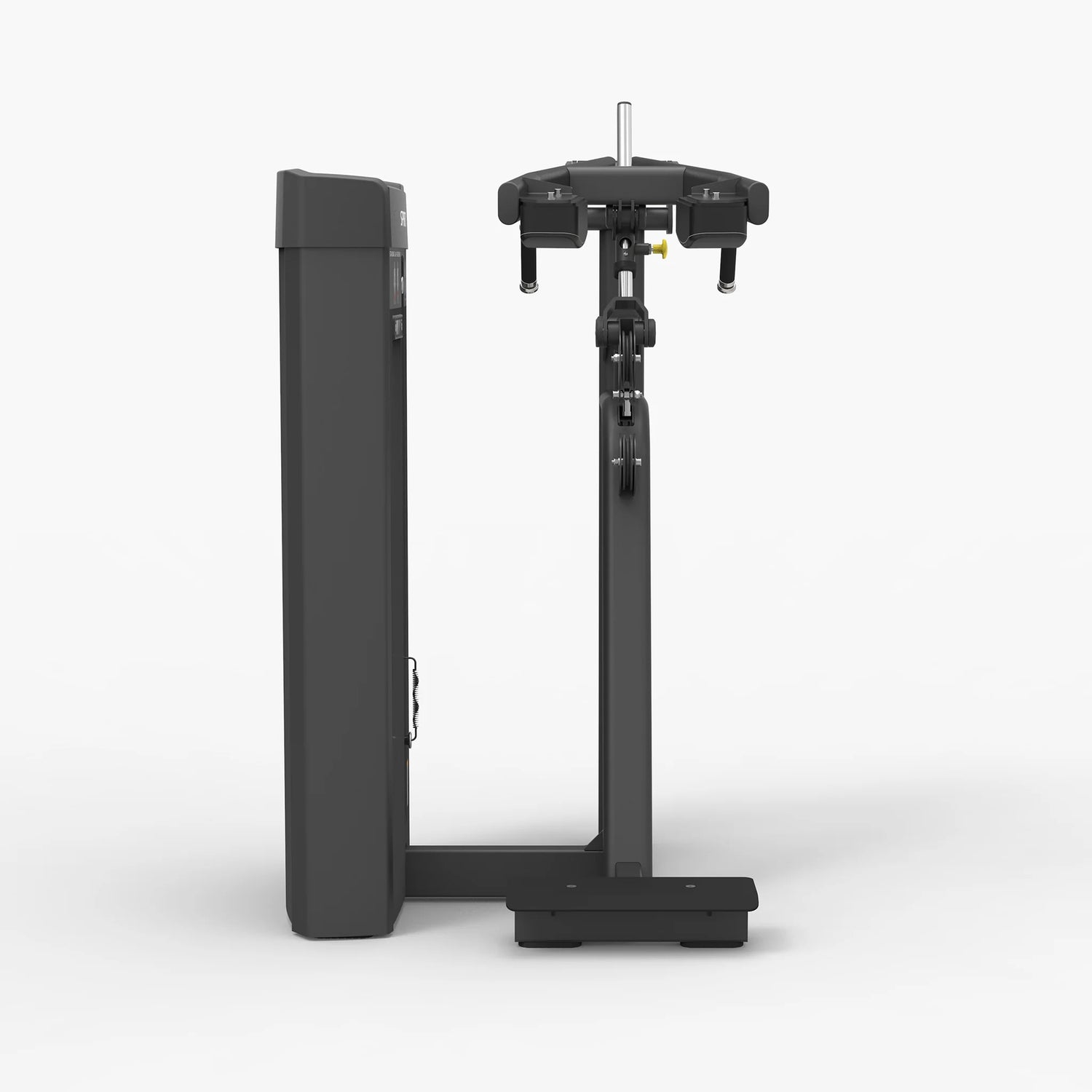

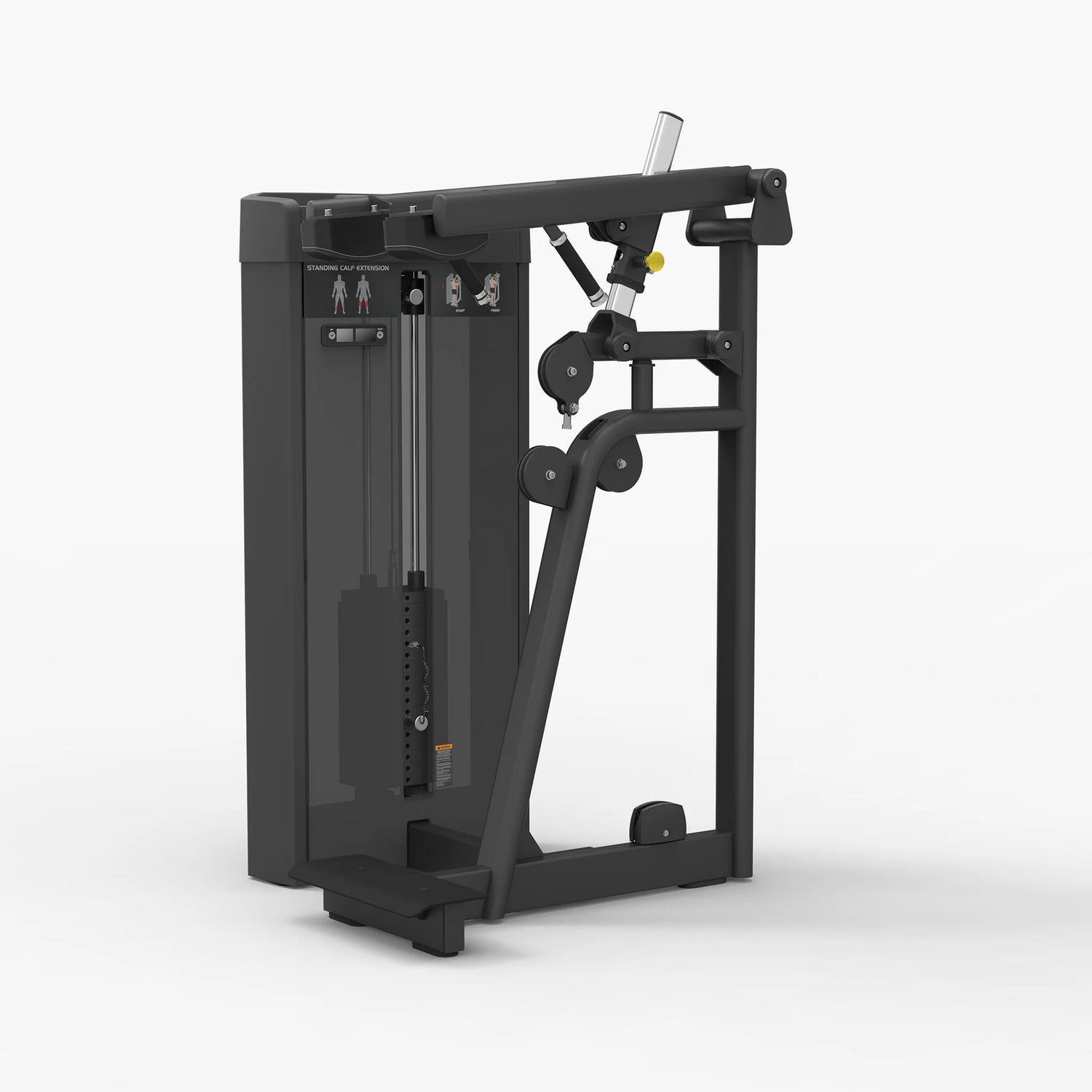

Spirit Fitness CSS-SCEX Standing Calf Extension

Yes — the CSS-SCEX is a dedicated single-station standing calf extension built to Spirit's Commercial grade, with a fully enclosed 250 lb weight stack and a 1.33 pulley ratio through LOOS USA cables.

The CSS-SCEX is part of Spirit Fitness's Selectorized line — single-station machines that isolate one movement rather than combining two exercises on one frame. It trains the calves exclusively, using an upright stance that loads the muscle across both the knee and ankle joints, with a fully enclosed 250 lb weight stack moving in 5 lb increments through a 1.33 pulley ratio and LOOS USA cables. The frame is commercial-grade steel finished in electrostatic powder coat, and it's rated for a 360 lb max user weight. Spirit backs the CSS-SCEX with its Commercial warranty tier, including a 10-year frame term, the same coverage standard used across its combo and dual machines.

It ships free via LTL freight across multiple cartons with liftgate delivery included by default, and Spirit Fitness recommends at least two people for assembly.

The CSS-SCEX ships free by LTL freight, arriving disassembled across several cartons per Spirit Fitness's packing spec, with liftgate delivery included by default so the crates come off the truck without a dock or forklift. If you have a loading dock or forklift on-site, ask for a no-liftgate freight quote to save on the delivery cost. Each shipment includes a full illustrated owner's manual along with every tool and piece of hardware needed for setup, and Spirit Fitness recommends at least two people handle assembly. Professional installation is also available through Blue Sky Fitness Supply if you'd rather not assemble it yourself.

Contact Blue Sky Fitness Supply first — we handle the warranty claim and coordinate with Spirit Fitness's service network to source the replacement part, so you're not navigating it alone.

If any part of the CSS-SCEX ever needs service, Blue Sky Fitness Supply handles the claim on your behalf and coordinates directly with Spirit Fitness's authorized service network to source the replacement. All repairs must be preauthorized before any work begins. Spirit Fitness's own service department is also reachable directly if you'd rather coordinate yourself, but it's never required — Blue Sky manages the process either way. Warranty registration must be completed online within 10 days of delivery to validate coverage, so keep your bill of sale and register promptly after the machine arrives.

A 10-year term covers the frame, welds, cams & plates; 5 years covers bushings, bearings, shocks, pulleys & guide rods; and 1 year covers finishes, cables, grips & labor.

Spirit Fitness backs the CSS-SCEX with a Commercial warranty covering every functional component. The frame, welds, cams, and plates carry a 10-year term, while bushings, bearings, shocks, pulleys, and guide rods are covered for 5 years. Paint and finishes, cables, grips, the counter/timer, pull-pin components, rail wheels, attachments, and all other parts carry a 1-year term, upholstery is covered for 6 months, and general labor runs 1 year. Registration must be completed online within 10 days of delivery to validate coverage, and prisons or correctional facilities are excluded.

It's built for users from 4'11" to 6'8" up to 360 lb, with adjustable shoulder pads for height and a non-slip foot plate for a full range of ankle motion.

Spirit Fitness recommends the CSS-SCEX for users from 4'11" to 6'8" tall, rated up to a 360 lb max user weight — a range that covers the vast majority of a commercial membership base. The shoulder pads adjust to fit users of varying heights, positioning the load correctly across the shoulders regardless of a member's stature, while a non-slip foot plate holds a stable base and allows a full range of ankle motion through the movement. Every contact pad uses high-density foam under premium upholstery with sport stitching, so the fit stays comfortable set after set. That combination of shoulder-pad adjustment and a stable, full-ROM foot plate makes the CSS-SCEX workable across a broad range of user heights without a fixed one-size setting.

A fully enclosed 250 lb weight stack moves in 5 lb increments, set with a pop-pin selector, and a 1.33 pulley ratio through LOOS USA cables translates that stack weight into resistance at the calf.

The CSS-SCEX uses a classic pin-select system: a fully enclosed 250 lb weight stack, built from a 10 lb top plate, 8x10 lb plates, and 8x20 lb plates, lets a user set resistance in clean 5 lb increments by moving a single selector pin. That stack weight doesn't translate one-to-one to the calf, though — a 1.33 pulley ratio means the effective resistance felt at the shoulders/calf runs higher than the number on the stack, routed through LOOS USA cables chosen for their low stretch and long service life under repeated use. Because the stack is fully enclosed, there's no exposed cable or moving plate for a user to catch a finger on between sets.

The CSS-SCEX isolates the calves — the gastrocnemius and soleus muscles of the lower leg — training them across both the knee and ankle joints for more complete development than a fixed-knee calf raise.

Standing calf extension is a calf-isolation movement: the CSS-SCEX trains the gastrocnemius and soleus, the two muscles that make up the calf, by loading the ankle through plantarflexion while a user stands upright. Unlike a fixed-knee standing calf-raise design that only recruits the gastrocnemius at a locked knee angle, the CSS-SCEX's upright positioning loads the calf across both the knee and ankle joints, engaging more of the muscle group through the movement. It's a common accessory movement for building calf size, strength, and ankle stability, and it's frequently programmed alongside squats, leg presses, and leg extensions to round out a complete lower-body routine.

Yes — the CSS-SCEX occupies about 41.5" L × 37.6" W and stands 65.2" tall, a compact footprint for a dedicated single-station calf machine.

The CSS-SCEX occupies about 41.5 inches long by 37.6 inches wide and stands 65.2 inches tall — Spirit Fitness's own facility safety guidelines call for a live training area at least 23.62" larger than that footprint on the access side, to leave room for safe use and an emergency dismount. As a single-station machine, it does one job — standing calf extension — rather than combining two exercises on one frame, which makes it a straightforward add to a facility building out a full circuit of dedicated single-movement stations. Steel feet with rubber covers keep the 540 lb frame stable and floor-safe once it's assembled. For a facility planning a leg-day circuit, the CSS-SCEX's compact footprint is an easy complement to a leg press or leg extension station nearby.

Commercial Warranty:
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Frame: 10 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Bushings / Bearings / Pulleys: 5 years
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Other parts: 1 year
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Upholstery: 6 months
‎ ‎ ‎ ‎ ‎ ‎ ●‎‎ ‎ ‎ Labor: 1 year https://www.blueskyfitsupply.com/pages/warranty-information
